When you have your thermostat wiring connected, the thermostat wiring diagram will allow you to see exactly what wires you need where, what to call each wire, and connect them accurately to each section of your air conditioning and heating system.
It will save you valuable time and money if you’re attempting to replace or install a new thermostat and especially if you are making sure your connections are set up properly for newer smart thermostat devices like nest, or classic older honeywell installations.
Nest Thermostat Wiring
Nest Installation Made Simple
Before You Install A Nest Thermostat, Know The Wiring. You may want to use some resources to guide you and your installation before you actually start screwing things into your wall.
If you have been googling the net trying to figure out nest wiring, I know how frustrating that can be for you, as I did. If you want your Nest learning thermostat installation to go smoother, try out some of the following guides so that you will know exactly how to proceed in the Nest wiring diagram step of your installation.
Honeywell Thermostat Wiring
Common Wiring Configurations

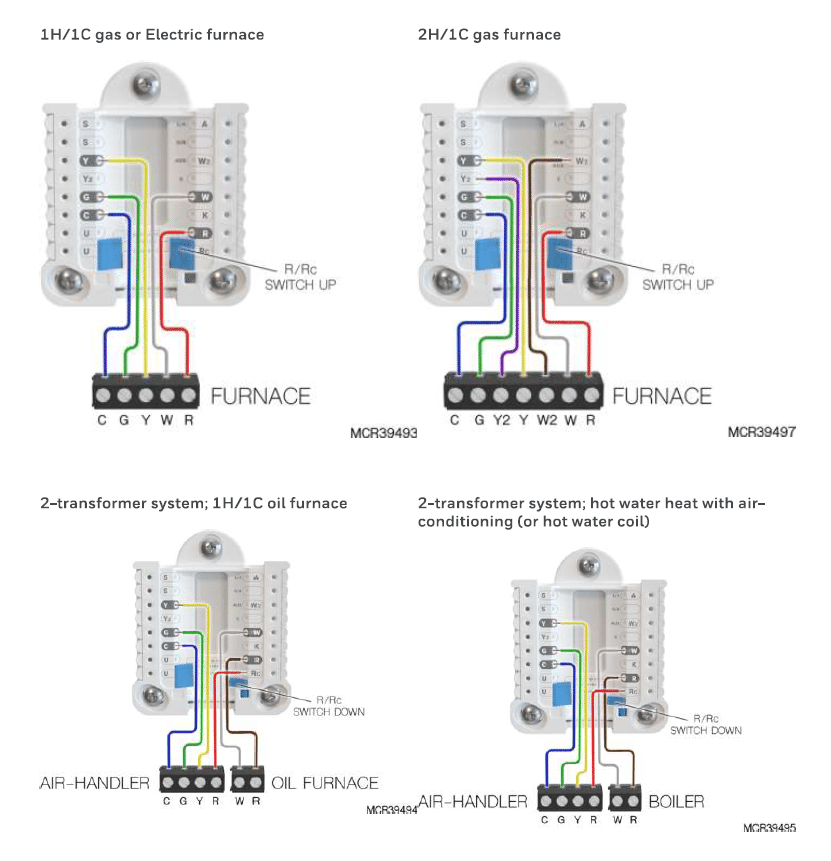

Honeywell thermostat wiring diagram. If your HVAC device is basic or complex, a wiring diagram makes it easy for you to make new installs and upgrades in your own system and setup.
Honeywell Thermostat Wiring Diagram PDF
A wiring guide covering multiple configurations, including 5-wire and 7-wire systems.
Final Thoughts
The ability to clearly see where each wire should be connected expedites the thermostat wiring installation and keeps you away from costly installation mistakes and hazards.
From your Nest thermostat wiring diagram to your Honeywell thermostat wiring diagram, have the right wiring diagrams readily available and use them as your guide for proper installation.
It’s important to make sure your wiring diagram is valid and that you check and verify each wiring connection before you power up your system!
